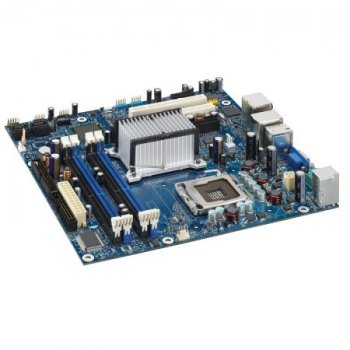

The Intel® Desktop Board D945GPM is designed to support Intel® Viiv™ technology∇ and maximize the enjoyment of digital entertainment throughout the home. This desktop board is based on the Intel® 945G Express Chipset including the Intel® Graphics Media Accelerator 950 helping to bring digital media to life with sharp, vibrant pictures, smooth playback of video and output to a wide range of displays, including High Definition TV (HDTV) and digital flat panels. Premium features include support for Intel® Viiv™ Technology, Intel® High Definition Audio (enabling 7.1 surround sound), designed for Dolby* Home Theater certification, and Intel® PRO 10/100/1000 LAN.

Intel® Desktop Board D945GPM Features

Features Benefits
Form Factor microATX (9.60 inches by 9.60 inches [243.84 millimeters by 243.84 millimeters])
Processor Support for an Intel® Pentium® D Processor in an LGA775 socket with an 800 MHz system bus
Support for an Intel® Pentium® 4 Processor in an LGA775 socket with an 800 MHz system bus
Support for an Intel® Celeron® D Processor in an LGA775 socket with a 533 MHz system bus
View all supported processors

Memory Four 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
Support for 667 and 533 MHz DDR2 DIMMs
Support for up to 4 GB of system memory

Chipset Intel® 945G Express Chipset
I/O Control Legacy I/O controller for diskette drive, serial, parallel, and PS/2* ports
Video Intel® Graphics Media Accelerator 950 onboard graphics subsystem
Audio 8-channel (7.1) audio subsystem with five analog audio outputs and one S/PDIF digital audio output (optical) using the Sigmatel* 9220/9223 audio codec
IEEE-1394a Interface IEEE-1394a controller and three IEEE-1394a connectors (one back panel connector, two front panel connectors)
LAN Support The board provides one of the following: Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel® 82573L Gigabit Ethernet Controller
10/100 Mbits/sec LAN subsystem using the Intel® 82562GZ Platform LAN Connect (PLC) device

Peripheral Interfaces Eight USB 2.0 ports
One serial port
One parallel port
Four Serial ATA interfaces with RAID support, (levels 0, 1, 0+1, and 5)
One parallel ATA IDE interface with UDMA 33, ATA-66/100 support
One diskette drive interface
PS/2 keyboard and mouse ports

Expansion Capabilities Two PCI Conventional* bus connectors
One PCI Express* x1 bus add-in card connector
One PCI Express x16 bus add-in card connector

Related Products

Processor Intel® Pentium® D Processor
Intel® Pentium® 4 Processor
Intel® Celeron® D Processor

Chipset Intel® 945G Express Chipset
