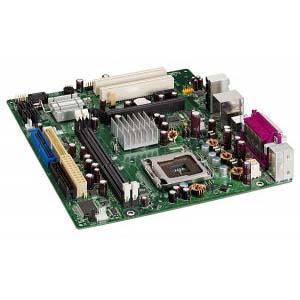

The Intel® Desktop Board delivers an integrated graphics solution for your next value platform.

The Intel® Desktop Board D101GGC supports the Intel® Pentium® D Processor, the Intel® Pentium® 4 Processor with Hyper-Threading Technology† and the Intel® Celeron® D processor in the LGA775 package.

This uATX board delivers both quality and value by offering features such as Intel® High Definition Audio and Realtek* 8101L 10/100 LAN.

This desktop board also features PCI Express* x16, DDR 400/333 memory, and 8 USB 2.0 ports. Features Benefits Form Factor microATX (9.60 inches by 8.60 inches [243.84 mm by 218.44 mm]) Processor Support for an Intel® Pentium® D Processor in an LGA775 socket with an 800 MHz system bus Support for an Intel® Pentium® 4 Processor in an LGA775 socket with an 800 or 533 MHz system bus Support for an Intel® Celeron® D Processor in an LGA775 socket with a 533 MHz system bus View all supported processors Memory Two DDR SDRAM Dual Inline Memory Module (DIMM) sockets Support for DDR 400 MHz and DDR 333 MHz DIMMs Support for up to 2 GB of system memory Chipset ATI* Radeon* Xpress 200 Chipset BIOS AwardBIOS* for Intel resident in the 4 Mbit FWH I/O Control SMSC* SCH5017 Legacy I/O controller for hardware management, diskette drive, serial, parallel, and PS/2 ports Audio Intel® High Definition Audio subsystem using the Realtek* ALC861 audio codec Video Integrated ATI* Radeon* X300 based graphics LAN Support 10/100 Mbits/sec LAN subsystem using the Realtek* 8101L LAN adapter device Peripheral Interfaces Eight USB 2.0 ports One serial port One parallel port Four Serial ATA interfaces Two parallel ATA IDE interfaces with UDMA 33, ATA-66/100 support One diskette drive interface PS/2 keyboard and mouse ports Expansion Capabilities Two PCI Conventional* bus connectors One PCI Express* x1 bus add-in card connector One PCI Express* x16 bus add-in card connector Related Products Processors Intel® Pentium® D Processor Intel® Pentium® 4 Processor Intel® Celeron® D Processor Chipsets ATI* Radeon* Xpress 200 Chipset

Download driver:

Como comprar:
- Fábrica: INTEL
- Site do fabricante: www.intel.com
- Distribuidor: Infomania
- Loja venda online: www.infomania.inf.br
- Revenda: Infomania - 51 3748 9009

Onde encontrar:
Loja Infomania - Unicshopping
Lajeado - Rio Grande do Sul

Atendimento virtual:
msn: genes@infomania.inf.br
email: genes@infomania.inf.br
