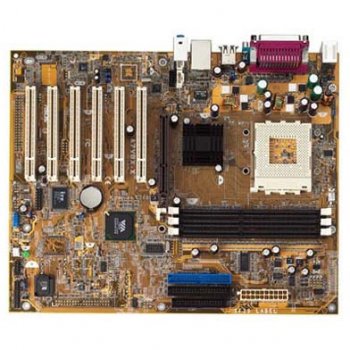

Placa Mãe 462 Asus A7V8X-X de alto desempenho

Specification

CPU Socket A for AMD Athlon™ XP/Athlon™ / Duron™ Thoroughbred/ Barton Core Support Chipset VIA KT400(A) VIA VT8235 Front Side Bus 333 / 266 / 200MHz Memory 3 x DDR DIMM Sockets Max. 3 GB unbuffered PC2100 / PC1600 non-ECC SDRAM Memory (PC3200 Max. to 2 banks only / PC2700 Max to 4 banks only) Expansion Slots 1 x AGP 8X 6 x PCI IDE 2 x UltraDMA/133/100/66 Audio ADI 1980 6-channel CODEC S/PDIF out interface LAN Realtek 10/100 Mbps Ethernet PHY USB VT8235 built-in USB2.0 ‧ 6 x USB 2.0 port Special Features ASUS MyLogo ASUS EZ Flash ASUS JumperFree SFS (Stepless Frequency Selection) ASUS C.O.P. (CPU Overheating Protection) ASUS C.P.R. (CPU Parameter Recall) CrashFree BIOS Back Panel I/O Ports 1 x Parallel 1 x Serial 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O 1 x S/PDIF out 4 x USB 2.0 1 x RJ-45 Port Internal I/O Connectors CPU/Chassis FAN connectors 20 pin ATX power connector IDE LED connector Chassis Intrusion Game port CD/AUX/ audio in Front panel audio connector 1 x USB 2.0 connector supports additional 2 USB 2.0 ports BIOS 2Mb Flash ROM, ASUS JumperFree, Award BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ASUS EZ Flash, MyLogo, ASUS CrashFree BIOS, ASUS C.P.R Industrial Standard PCI 2.2, USB 2.0 Manageability WfM2.0, DMI2.0, WOR, WOL, Chassis Intrusion Support Disc Drivers ASUS PC Probe Trend Micro PC-cillin 2002 anti-virus software ASUS LiveUpdate Utility Accessories User's manual Driver CD UltraDMA 133/100 / 66 cable FDD cable I/O shield Form Factor ATX Form Factor 12 x 9.6 (30.5cm x 24.5cm)

The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. * PCB color and bundled software versions are subject to change without notice. * Brand and product names mentioned are trademarks of their respective companies.

Just the right features and performance 333MHz FSB Athlon XP CPU Support AMD's Athlon XP 2700+ and all follow-up CPUs now support 333MHz FSB for increased office productivity and enhanced digital media experience.

DDR400 (PC3200) Support DDR400 (PC3200), the latest and fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance. (Note: PC3200 Max. to 2 banks only; PC2700 Max. to 4 banks only)

AGP 8X Technology AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.

S/PDIF out port on back I/O The A7V8X-X provides convenient connectivity to external home theater audio systems via an S/PDIF out interface. Experience 5.1- channel surround sound and enhanced 3D audio while playing your favorite DVDs or games.

ASUS C.O.P. (CPU Overheating Protection) ASUS C.O.P. is a hardware protection circuit that automatically shuts down the system power before temperatures go high enough to permanently damage your CPU.

C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Simply power off and restart the system and the BIOS will automatically restore the CPU default setting for each parameter.

CrashFree BIOS CrashFree BIOS allows users to restore BIOS data from a floppy diskette even when BIOS code and data are corrupted during upgrade or invaded by virus. Unlike other competing vendors products, ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM.

ASUS EZ Flash With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required.

ASUS MyLogo ASUS MyLogo personalizes and adds style to your system with customizable boot logos.
